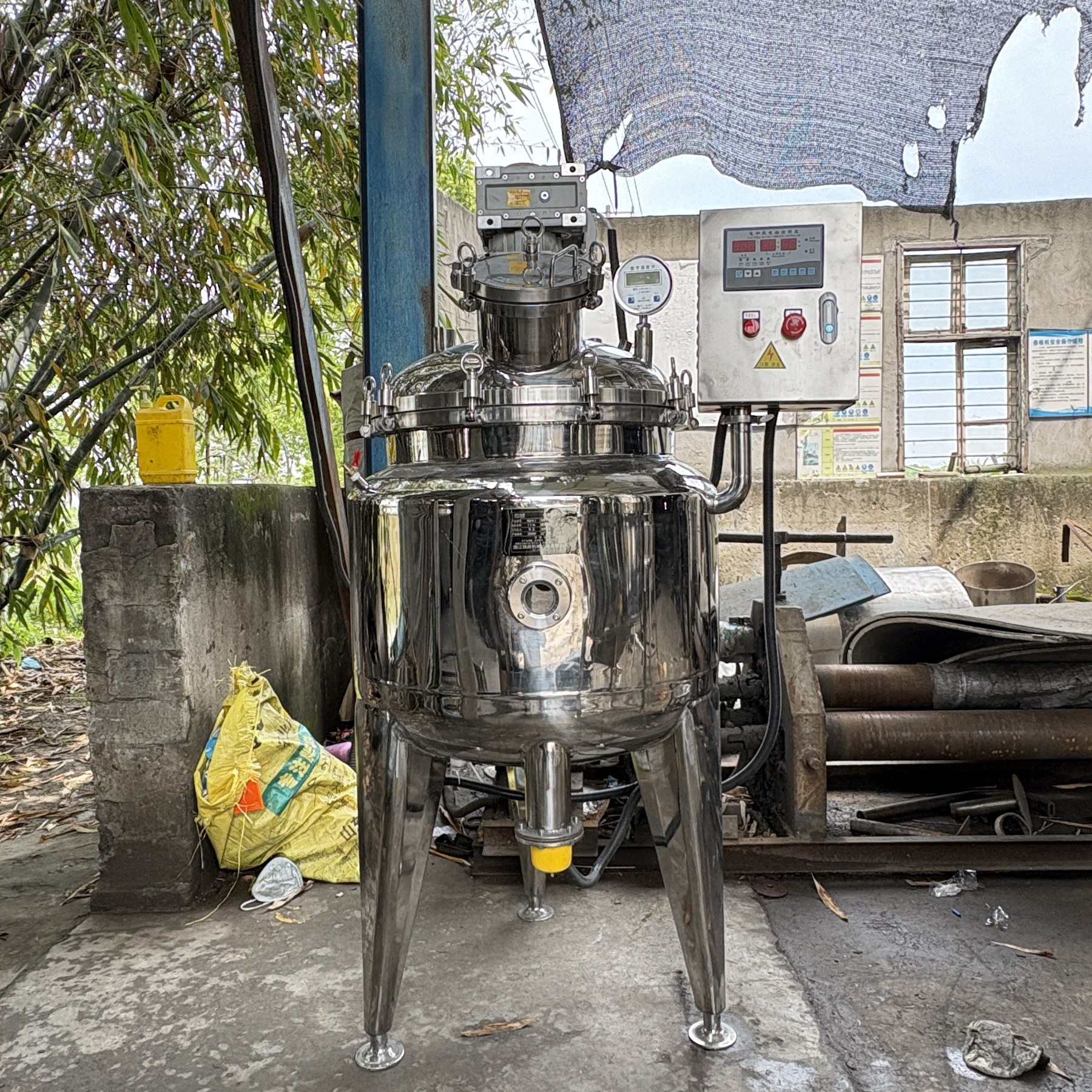

The stainless steel reactor is a core processing vessel widely used in food, pharmaceutical, cosmetic and chemical industries. It integrates heating, cooling, stirring, mixing and reaction functions in one unit. Equipped with variable-frequency stirring system and sealed structure, the reactor realizes constant-temperature reaction, emulsification, mixing and material synthesis under vacuum or normal pressure. All contact parts adopt SS304/SS316L stainless steel, featuring anti-corrosion, high temperature resistance and easy cleaning. Customized volume, pressure and heating methods are available to meet different production requirements.
| Parameter | Specification |
|---|---|
| Material | SS304 / SS316L Stainless Steel |
| Volume Range | 50L - 5000L (Customized) |
| Working Pressure | Normal Pressure / 0.1-0.6MPa |
| Working Temperature | 0℃ - 180℃ |
| Stirring Power | Customized According to Volume |
| Stirring Speed | 0-600r/min (Frequency Conversion Speed Regulation) |
| Heating Method | Electric Heating / Steam Heating / Water Bath Heating |
| Sealing Type | Mechanical Seal, Full Vacuum Sealing |
| Surface Treatment | Mirror Polishing Inside and Outside (Ra≤0.8μm) |
| Application | Chemical Reaction, Material Synthesis, High-viscosity Mixing |
